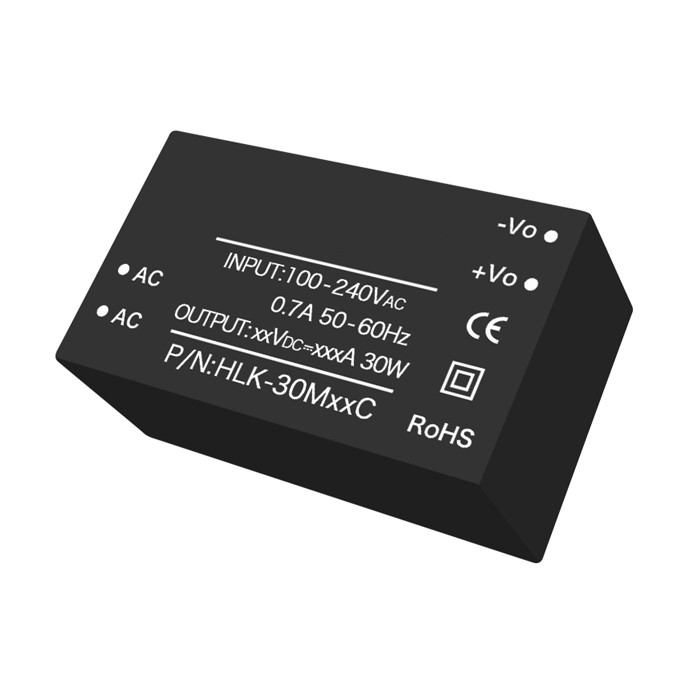

AC-DC 30W module converter

·Input voltage range: 85~265VAC/120~350VDC

·Input and output isolation, isolation voltage 3000VAC

·Output short circuit overcurrent protection, and self-recovery

·Fully enclosed plastic housing, meet UL94-V0 requirements

·CE certified, meet UL/EMC safety test and RoHS certification requirements

1. Product features

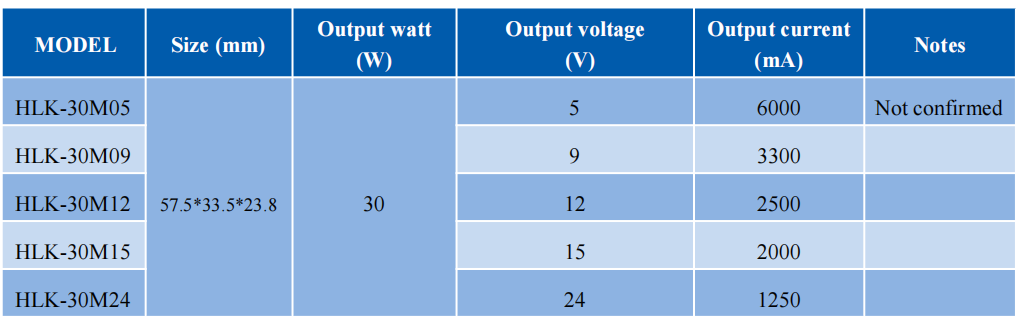

2. Product Model

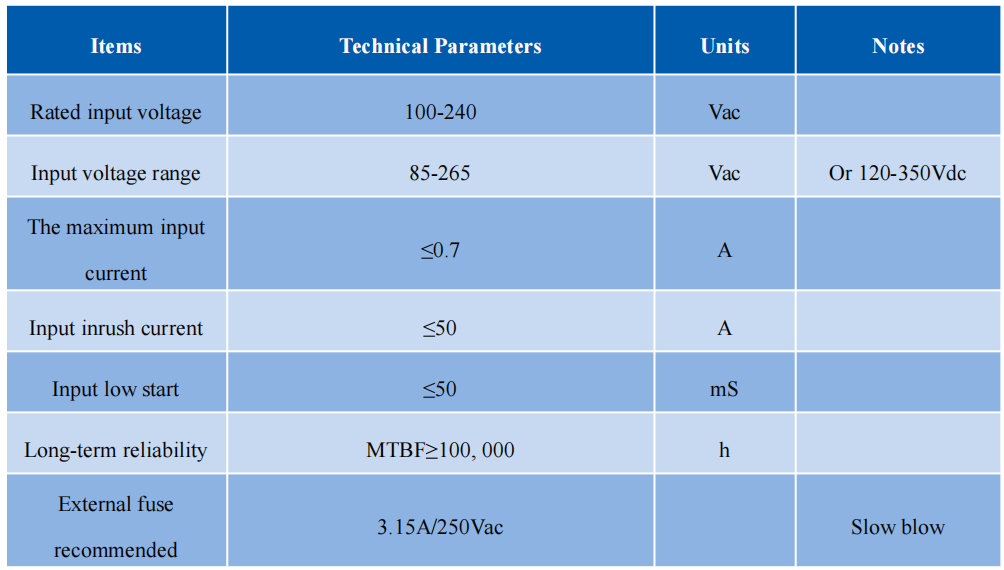

3. Input features

Rectangular connector High current mixed connector transmits current and digital signals at the same time
